OFC 43 premises cable extrusion
Premises cable production for indoor and FTTH cables.
Indoor and FTTH cable manufacturers need to produce many cable designs efficiently, from patch cords, simplex and duplex cables to distribution, break-out, riser and FTTH drop cables. Each product requires the right combination of fiber handling, stranding, yarn application, extrusion, cooling and winding.
Premises cable extrusion brings these process steps together to create complete indoor fiber optic cable products. The challenge is to combine product flexibility, stable cable quality and repeatable production while keeping the line adaptable to different cable designs and factory layouts.
OFC 43 Premises Cable Extrusion Line is designed for a broad range of fiber optic indoor and FTTH cable designs. With DTSZ stranding, ROEX extrusion technology, yarn application, flexible layouts and modular line components, OFC 43 enables efficient production of premises cables in one integrated process.
stranding, yarn & extrusion
Combines stranding, yarn application, and extrusion in one integrated line for efficient premises cable manufacturing.
versatile production
Enables manufacturers to produce patch cords, FTTH drop cables, simplex, duplex, distribution, break-out, and other indoor cable designs on one adaptable premises cable line.
ROEX extrusion expertise
Built on Rosendahl’s extrusion know-how, ROEX 45/60 extruders, customized screw design, material-specific crossheads, and recipe-based line control for stable, repeatable jacketing.
Versatility & efficiency in premises cable production
DTSZ stranding, ROEX extrusion for production of indoor and FTTH cables
advantages of the OFC 43 premises cable extrusion line
Efficient premises cable production
Indoor and FTTH cable capability
OFC 43 is designed for a broad range of indoor optical fiber and FTTH cable designs. Typical products include patch cords, simplex and duplex cables, distribution cables, break-out cables, riser cables, and FTTH drop cables.
Stranding, yarn application, and extrusion in one step
The line combines stranding, yarn application, and extrusion in one integrated production process. This helps reduce unnecessary handling steps and supports efficient manufacturing of complete premises cable products.
Yarn application and strength members
The line can integrate high-speed low-tension yarn serving, aramid yarn pay-offs, and strength member pay-offs for FRP rods and other cable elements. This supports different indoor cable constructions and helps build the required cable strength directly into the production process.
ROEX extrusion and material processing
ROEX extrusion technology supports stable processing of common indoor cable materials such as PVC, PE, HFFR, and PA12. The extruder design includes stable output, operation-friendly adjustment, and customized screw design for different product and material requirements.
Crosshead and HFFR processing
OFC 43 can be configured with NXH or RX crosshead solutions. For HFFR compounds, the material highlights the need for a crosshead distributor with large and deep flow channels, supporting proper material flow and stable extrusion quality in demanding indoor cable applications.
Cooling, take-up, and line handling
The line can include CS 15 cooling, capstan solutions, and automatic dual take-ups or single take-up with accumulator for stable handling from extrusion to winding. The cooling system supports customized cooling lengths, product-related capacity checks, and temperature stability, while take-up solutions support round and flat products with accurate traversing.
Repeatable production and line control
The line control system supports recipes, alarm log, data logging, and factory network connection. This allows established process parameters to be reused and helps maintain repeatability between production runs.
OFC 43 premises cable line video

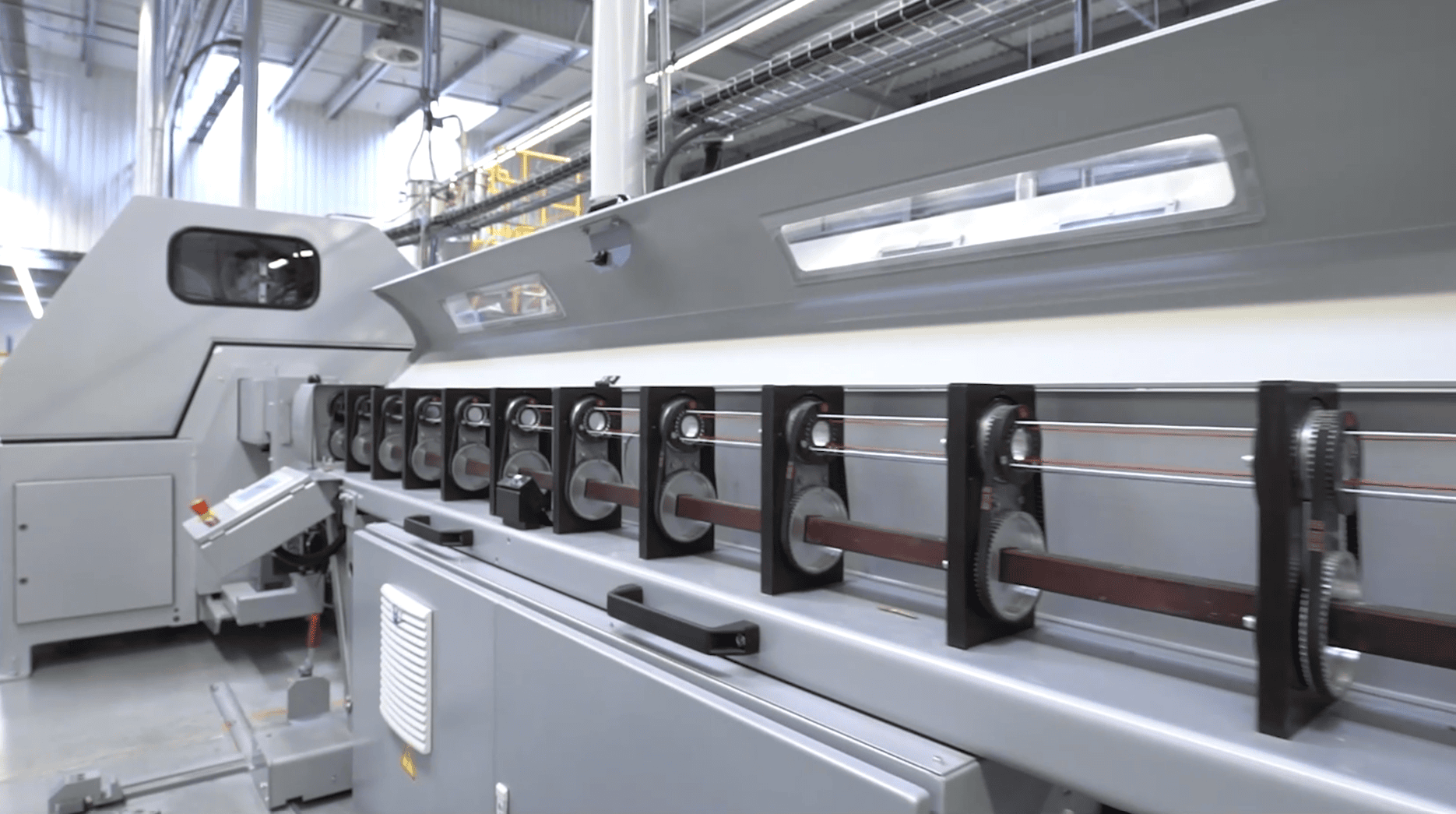

OFC 43 premises cable extrusion line
OFC 43 Premises Cable Extrusion Line supports indoor and FTTH cable production with stranding, yarn application and extrusion in one process step.
benefits of OFC 43 premises cable extrusion
- Efficient production of indoor and FTTH fiber optic cables
- Supports patch cord, simplex, duplex, distribution, break-out, and FTTH drop cable designs
- Stranding, yarn application, and extrusion in one process step
- SZ stranding with smooth product guiding
- High-speed low-tension yarn serving for flexible cable constructions
- ROEX 45 / 60 extrusion for stable indoor cable jacketing
- Processing of PVC, PE, HFFR, and PA12 materials
- Crosshead options for standard and demanding indoor cable compounds
- CS 15 cooling with customized cooling lengths and temperature stability
- Optimized pay-off and take-up systems for controlled cable handling
- Accurate traversing for round and flat cable products
- Recipe-based line control, reporting, data logging, and alarm management
- Adaptable line concept for changing cable designs and factory requirements
solutions for OFC 43
- Premises cable extrusion
- Patch cord production
- FTTH drop cable production
- Simplex and duplex cable production
- Distribution cable production
- Break-out cable production
- SZ stranding technology
- DTSZ stranding configuration
- High-speed low-tension yarn server
- Aramid yarn pay-off
- Strength member pay-off for FRP rods
- ROEX 45 / ROEX 60 extrusion systems
- NXH or RX crosshead solutions
- Material drying, conveying, and color feeding systems
- CS 15 cooling section
- Diameter and lump quality control
- Belt wrap capstan and wheel capstan solutions
- EKP automatic dual take-up systems or NTU 1250 single take-up
- LOS or PSU line control, recipes, reporting, service, upgrades, and support
