As lithium-ion battery production continues to scale globally, integrating robust safety
systems is no longer optional.
safety first
Repeatability, traceability, and efficiency are as important as safety when producing lithium-ion batteries. Our 3-step safety concept provides a safe environment for your machines, operators, and products.
prevent
insulted grippers
safe lock features
thermal imaging
product flow monitoring
reduce
reduce damages in case of a safety event
evacuation of cell/module/pack (evacutation box)
connection to smoke exhaust
assist
assist with supportive measures
extinguishing lines
thermal event protection mode
emergency realease for safety lock
interface to alarm systems
introducing the evacuation box
safeguarding lithium-ion battery production
In the fast-paced world of lithium-ion battery production, safety is paramount. In the event of a thermal runaway, conditions escalate rapidly: temperatures can soar to 1,000°C, fires spread quickly, energy is released intensely, and dense smoke develops within moments. In such scenarios, every second truly counts.
The Evacuation Box emerges as a crucial tool, designed to reduce risks and ensure a secure working environment. With its robust design and versatile features, the Evacuation Box is an indispensable asset in lithium-ion battery production.
The Evacuation Box enables operators to handle thermal events with confidence. Most important: it protects both personell and the production facility.Â
design and features
Tests confirmed that both the design and functionality of the Evacuation Box deliver exactly what manufacturers need most in critical situation.
Floodable
Container
The work table can be lowered into a waterproof container, where it can be flooded.
Manual Hydraulic System
Independent from external power sources, the table is brought into the right height position using a manual hydraulic system.
Emergency Lowering Mechanism
In the face of danger, operators can swiftly lower the work table along with the product into the container with a simple push of a button.
Water Filling Capability
For added safety measures, the container can be filled with water to control a lithium-ion battery fire effectively.
Optional:
Permanent Water Filling Option
Recognizing the diverse needs of our customers, an optional permanent water filling feature is available. This configuration is ideal for handling particularly risky products or exhaustive battery testing until failure.
Optional:
Easy Removal
The entire box can be easily
evacutated from the building by trained personnel. It is equipped with guide rails for forklift compatibility or can get its own set of wheels.
in case of a thermal event

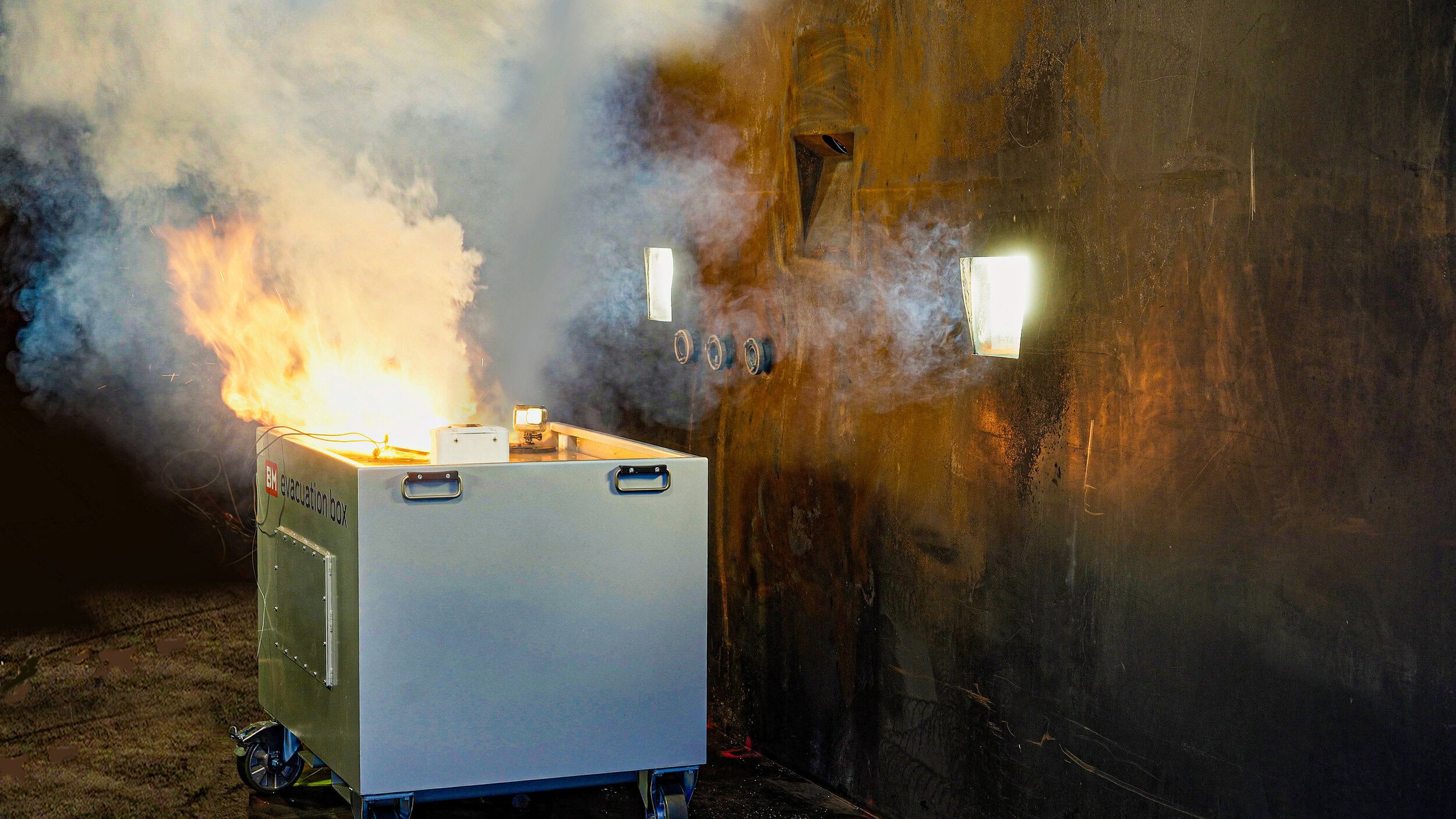

To validate our Evacuation Box under realistic conditions, we conducted a series of controlled fire tests in collaboration with the Green Testing Lab. Four battery modules – two equipped with prismatic cells and two with cylindrical cells – were subjected to targeted thermal stress. Using a heating plate, each module was gradually heated to 180°C, deliberately triggering a thermal event that led to self-ignition, as expected.
Two evacuation scenarios were tested for each module:
- Lowering the module into apre-flooded Evacuation Box
- Evacuation combined with simultaneous flooding of the container
